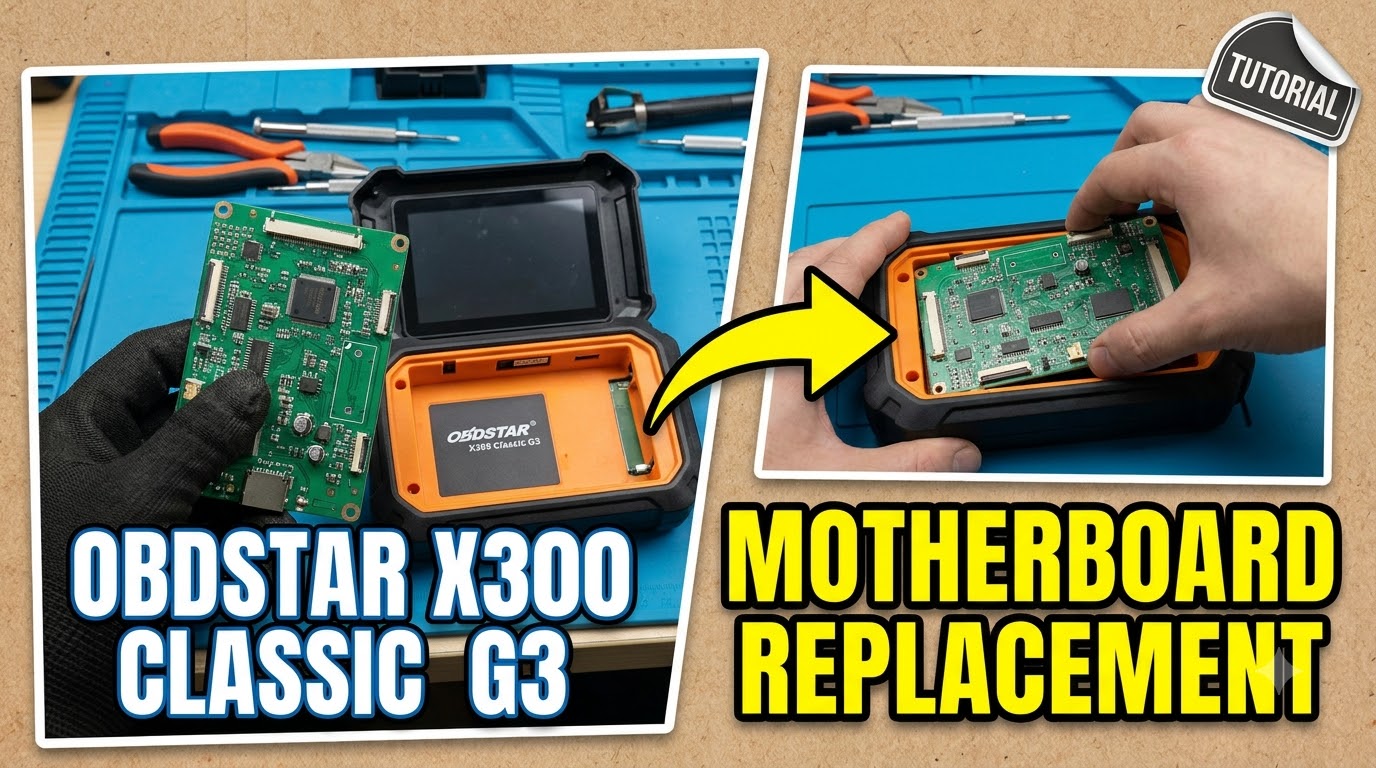

OBDSTAR X300 Classic G3 Motherboard Replacement: A Complete Guide
The OBDSTAR X300 Classic G3 is a cornerstone tool for many automotive locksmiths and diagnostic technicians. Its robust design handles daily use, but like any sophisticated electronic device, internal components can occasionally fail. When the mainboard (or motherboard) requires replacement, the task may seem daunting. However, with the right guidance, careful preparation, and a methodical approach, this repair is entirely manageable in a workshop environment. This comprehensive guide provides a detailed, step-by-step procedure for replacing the motherboard of your OBDSTAR X300 Classic G3, ensuring you can restore your tool to full functionality with confidence.
Preparation and Essential Precautions
Before beginning any hardware repair, proper preparation is key to success and safety. The motherboard is the central nervous system of the X300 Classic G3, handling all processing and communication. Incorrect handling can lead to further damage. Follow these preliminary steps and warnings:
- Power Down and Disconnect: Ensure the device is completely powered off and disconnected from any external power source. Remove the battery to eliminate any risk of electrical shorts.
- Gather Tools: You will need a set of precision screwdrivers (including hex socket drivers), a pair of tweezers, a spudger or plastic opening tools, and most critically, a temperature-controlled soldering iron capable of 350°C ± 10°C.
- Work Environment: Perform the repair on a clean, static-free workbench. Use an anti-static wrist strap if available to protect sensitive electronic components from electrostatic discharge (ESD).
- Documentation: Take clear photos at each step of the disassembly. This serves as a crucial reference during reassembly, especially for cable routing and screw placement.
Phase 1: Detailed Disassembly of the X300 Classic G3
The disassembly process must be executed with patience and care. Forcing components can damage fragile flex cables or connectors. Follow these structured steps to safely expose the motherboard.
External Housing and Battery Removal
Begin by removing the protective rubber case that surrounds the device. This case is typically friction-fit and can be carefully peeled back. Once the case is off, locate the hex socket screws securing the back cover. Using the appropriate driver, remove all visible screws and set them aside in an organized manner. Gently lift the back cover away from the device. Your first internal task is to disconnect the battery. Locate the battery connector on the mainboard, press down on the retaining clip, and carefully pull the connector straight out to sever power completely.
Accessing the Android Board and Display Assembly
With the battery disconnected, your next target is the Android board, which sits atop the mainboard in the stack. First, gently detach the antenna cable, noting its routing for later. Use your screwdriver to remove the screws holding the Android board in place. Carefully lift the Android board, exposing the screen flex cable beneath. To safely remove the LCD and touch panel, you’ll need to peel back the acetate tape securing the screen flex cable connections. Once exposed, gently unlock and disconnect the LCD and touch panel cables. Also, unplug the small speaker cable. This will allow you to remove the entire front screen assembly, giving you full access to the mainboard and the coil beneath.
Removing the Mainboard and Soldered Components
Now you can clearly see the mainboard, along with the coil (inductor) that is soldered onto it. Before removing the mainboard, you must desolder the coil to separate it from the board. Set your soldering iron to 350°C ± 10°C. Carefully apply heat to the solder joints of the coil and gently lift it off the board. Place the coil safely aside, as it will be reused on the new mainboard. Next, locate the camera module. Unplug its flex cable, remove the securing screws, and lift the camera out. Finally, locate the conductive foam on the underside of the mainboard. If it is not already attached to your new replacement board, carefully peel it off from the old board. Note that this foam is fragile and can be easily damaged, so proceed slowly. With all these elements cleared, remove the final screws securing the mainboard and lift it out of the housing. The disassembly is now complete.
Phase 2: Installation of the New Motherboard
With the device disassembled and the old mainboard removed, you’re ready to install the new replacement motherboard. This phase reverses the disassembly process with a few critical steps and precautions.
Preparing the New Board and Reassembling Modules
Take your new mainboard and begin by transferring the components you removed. First, install the camera module back onto the new board, securing it with its screws and carefully reconnecting its flex cable. If your new mainboard does not already have the conductive foam attached, carefully transfer it from the old board. This foam is important for grounding and heat dissipation. Next, insert the Android board back into its position on top of the new mainboard and secure it with its retaining screws.
The Crucial Step: Soldering the Coil
This is arguably the most delicate part of the installation. With the mainboard partially positioned in the housing, you must solder the coil back onto the new board. Again, set your soldering iron to 350°C ± 10°C. Align the coil with its designated pads on the new mainboard. Apply heat and a small amount of solder to each joint to create a solid, reliable connection. Critical Warning: Ensure the screen flex cable is kept clear of the area where you are working. Also, when maneuvering the mainboard into its final position, be mindful of the wires connected to the coil to prevent pulling or stressing them. Once the coil is securely soldered, fully align the mainboard with the housing connectors and press it into place.
Final Connections and Reassembly
Now secure the mainboard with its screws. Also, fasten the coil bracket with its screws to hold the coil firmly in place. Reconnect the LCD screen flex cable and the TP (touch panel) flex cable, ensuring the white line on the cable is facing up. For reliability, apply new acetate tape over both the connector and the flex cable to secure them. Reconnect the speaker cable and reattach the antenna, routing it as it was originally. Finally, reconnect the battery connector to the new mainboard, and carefully fit the back cover back onto the device. Do not secure the screws just yet.
Phase 3: Power-On Test and Post-Replacement Checks
Before sealing everything completely, it’s imperative to test the device. Press the power button to turn on the X300 Classic G3. If it boots up normally and the screen displays correctly, the motherboard replacement is a success. If the device fails to boot or shows abnormalities, immediately disconnect the battery and double-check all cable connections. Ensure the coil is properly soldered and there are no solder bridges. If issues persist, note your device’s serial number and contact OBDSTAR after-sales support for further guidance. If the display appears abnormal (e.g., lines or artifacts), this may indicate an issue with the screen connections or the display itself. In such cases, contact after-sales support and provide your device serial number for assistance.
Important Final Notes and Account Synchronization
Assuming the device powers on successfully, proceed to fasten the back cover screws and reattach the rubber case. Your repair is complete. However, a crucial step remains if you have replaced the VCI (Vehicle Communication Interface) motherboard component. This component is tied to your OBDSTAR account. You must contact your dealer or OBDSTAR support to synchronize your account information with the new hardware. Provide them with the serial numbers of both the old and new VCI motherboards to ensure your software licenses and online features transfer correctly. Neglecting this step could result in functionality limitations.
For official product documentation, software updates, and technical support resources, the OBDSTAR official website provides access to manuals, update portals, and regional support contacts.
Conclusion
Replacing the motherboard in your OBDSTAR X300 Classic G3 is a technical but achievable task with this detailed guide. By following the structured disassembly and installation steps, paying close attention to the soldering of the coil, and performing thorough testing, you can effectively repair your key programmer. Remember the importance of the post-installation account synchronization to maintain full software access. With patience and precision, you can extend the lifespan of your valuable diagnostic tool and minimize workshop downtime.
